50ml high quality 50ml glass bottle

Ref. No.: RS0213 Size: 34.6*35.5*118 WT(g）: 75 Mouthful（ml）: 61 Finish(mm): 16.3/9.5

Product Details

Ref. No.: RS0213
Size: 34.6*35.5*118
WT(g）: 75
Mouthful（ml）: 61
Finish(mm): 16.3/9.5
Production description:Extra flint quality glass bottle small size 50ml/60ml
We ensure high-quality output of bottles through a multi-tiered rigorous QC process. Post annealing inspectors are placed to observe for inconsistencies, imperfections & occlusions. Glass bottles are then subjected to machine inspection, and finally a secondary physical inspection. Machines are also initially calibrated such that that bottle volume and dimensional tolerances are within acceptable standards. In the event that you have a specific inspection criteria, we can formulate a bespoke process according to your criteria. Additionally clients are most welcome to visit and inspect our factory in China. This can be facilitated via your account manager.

Ref. No.: RS0213
Size: 34.6*35.5*118
WT(g）: 75
Mouthful（ml）: 61
Finish(mm): 16.3/9.5
Production description:Extra flint quality glass bottle small size 50ml/60ml
We ensure high-quality output of bottles through a multi-tiered rigorous QC process. Post annealing inspectors are placed to observe for inconsistencies, imperfections & occlusions. Glass bottles are then subjected to machine inspection, and finally a secondary physical inspection. Machines are also initially calibrated such that that bottle volume and dimensional tolerances are within acceptable standards. In the event that you have a specific inspection criteria, we can formulate a bespoke process according to your criteria. Additionally clients are most welcome to visit and inspect our factory in China. This can be facilitated via your account manager.

Facilities details

Production Lines

Raw Material Preparation

Raw Material Preparation

* Main raw materials: silica sand (silica),soda ash, limestone, and cullet (recycled glass) , etc. * Accessories: such as coloring agents, degassing agents, etc., used to adjust the color and properties of glass.
Batching

Batching

*These raw materials are carefully measured and mixed to form a batch.
Melting

Melting

* The mixed batch is fed into a furnace where it is heated to extremely high temperatures (around 1,700 to 2,000°C or 3,100 to 3,600°F) to melt the raw materials into molten glass.
Forming

Forming

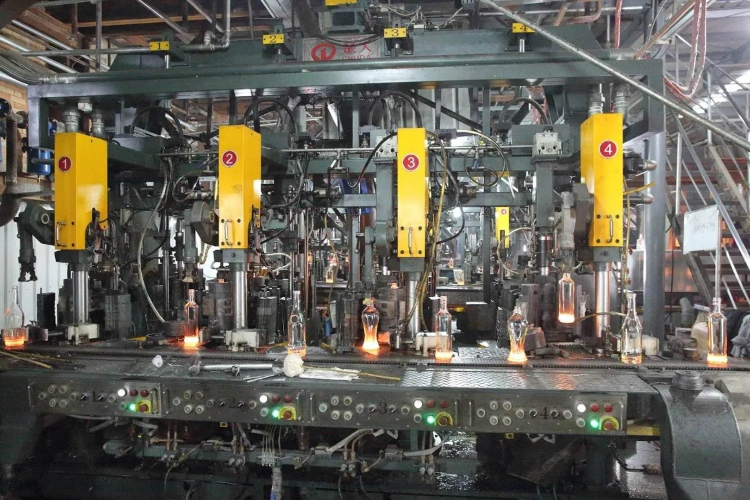

* Shape the glass into bottles using forming machines. Common methods include the blow-and-blow process for narrow-neck bottles or the press-and-blow process for wide-mouth containers.
Annealing

Annealing

*Lehr: After forming, the bottles are gradually cooled in a controlled environment known as an annealing lehr. *Temperature Control: The cooling process is gradual and carefully controlled to prevent the glass from cracking or breaking.
Surface Treatment

Surface Treatment

* Clean the bottle to remove dust and other dirt generated during the production process. Coating and Printing: Coating, printing labels, or other decorative treatments as needed.
Packaging

Packaging

* Finished bottles are packed and prepared for shipping. Packaging may include wrapping, boxing, or palletizing.
QC Inspection

QC Inspection

* Inspection: Bottles are inspected for defects, such as bubbles, cracks, or imperfections. Modern manufacturing often involves automated systems that use cameras and sensors to detect flaws. *Testing: Bottles might be tested for strength and other properties to ensure they meet industry standards.
